Durable Architectural Stainless Steel Wire Mesh

Name: Durable Architectural Stainless Steel Wire Mesh
Brand: LNF ROPE WIRE MESH
Price: 16.78 USD

Quality Durable Architectural Stainless Steel Wire Mesh wholesale

Brand Name : LNF ROPE WIRE MESH

Model Number : Stainless Steel

Certification : ISO

Place of Origin : China

MOQ : 50M2

Price : 16.78$/M2

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 10000M2/per Week

Delivery Time : 7 work days

Packaging Details : Metal Pallet

Material : Stainless Steel Wire,316,316L stainless steel,304L,Galvanized Steel Wire

Application : Protecting Mesh,Filters,Screen,Woven Wire Mesh,decorative cable mesh

Type : Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh

Weave style : Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave

Technique : Woven,Welded Mesh,Weave

Feature : Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance

Wire diameter : Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized

Usage : filter,Protection,decorative wire mesh,aviary mesh

Hole shape : Diamond,Square Hole,Rectangular,as per requirement,round hole

Color : Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized

Product name : SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird

Width : 0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m

Length : 30m,2-4m,30m per roll or as required,30m/roll 50m/roll

Surface treatment : Hot Dipped Galvanized,black/ pre-gal/hot dip gal,Mill.Coloer Finish

Sample : Available,Free

Mesh size : 8-500 mesh,20mm-160mm,as your requirement

Size : 3"*3",4"*4",1"*1",1.5"*1.5",Customized

Advantage : Superior wire,no noise,corrosion resistance,High strength,Wear-resisting

Aperture : 25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized

Contact Now

Durable Architectural Stainless Steel Wire Mesh

Knotted cable mesh is a type of inter-woven mesh fabricated from high tensile stainless steel cables in construction of 7 × 7 or 7 × 19. Compared with similar products, our range of knotted cable meshes have incomparable advantages in terms of practicability, security, durability, aesthetic property and life span as shown below:

Stainless steel knotted cable mesh

High versatility
Our range of knotted cable mesh are versatile and extensively used in following aspects:
- Building screen.
- Security fencing.
- Division screen.
- Zoo enclosure.
- Animal cage.
- Infill balustrade panels.
- Aviary netting.
- Fall protection.
- Helipad.
- Green facade.
- Parking & garage facades.
- Decoration.
- Shop fitting, etc.
Excellent security
With flat surface, knotted cable mesh effectively avoids people and animals being scratched. In addition, this mesh is extremely impact resistant, that is to say, it can provide superb protection to enclosed animals and minimize fall damages.
Superb durability
Made of high quality stainless steel AISI 304 or AISI 316, our range of knotted cable mesh has indestructible construction for providing high impact and break resistance. It has excellent wear and tear resistance, high load bearing capacity to bear the heavy snow. Meanwhile, it can withstand destructive chewing by rodents and other pests.
Aesthetic property
Equal rhombic holes allow for high transparency without any sight blocking. Its elegant appearance and durable structure make it much more appreciated by garden designers and architects all over the world.
Wide life span
Knotted cable mesh is remarkably weather resistant so it can withstand the harshest conditions such as hard rain, heavy snow even hurricane. It also has high resistance to UV, corrosion and rust which permit a long lifespan over 30 years. Meanwhile, our range of knotted cable mesh is free of maintenance and special cleaning and coating are not needed.

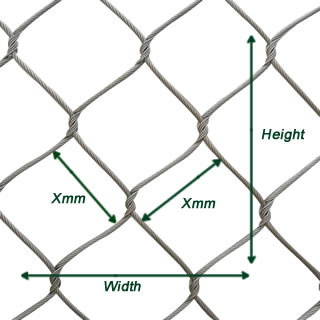

Dimension of knotted cable mesh

Besides, knotted cable mesh supplied by our company is environment friendly, non-flammable and reusable. Additionally, flexible structure allows for free-angle curving and fold for easy transportation and installation.

Details:

Name: flexible cable mesh - knotted type.
Pattern: diamond.
Cable material: stainless steel AISI 304, 304L, 316 or 316L.
Cable construction: 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)
Cable diameter: 1/8", 3/32", 5/64", 1/16" and 3/64".
Mesh opening size: 1" × 1", 1-1/2" × 1-1/2", 2" × 2", 3" × 3" and 4" × 4".
Standard mesh angle: 90°.
Mesh size: W: 20 mm to 120 mm; H: 20 mm to 120 mm.

Specification:

Knotted cable mesh - 1/8" cable
Code	Cable diameter		Hole size		Normal break	Rope structure
KCM-A51	1/8"	3.2 mm	2" × 2"	51 mm × 51 mm	1600 lbs	7 × 19 cable structure
KCM-A76	1/8"	3.2 mm	3" × 3"	76 mm × 76 mm	1600 lbs
KCM-A90	1/8"	3.2 mm	3.55" × 3.55"	90 mm × 90 mm	1600 lbs
KCM-A102	1/8"	3.2 mm	4" × 4"	102 mm × 102 mm	1600 lbs
KCM-A120	1/8"	3.2 mm	4.75" × 4.75"	120 mm × 120 mm	1600 lbs

Knotted cable mesh - 3/32" cable
Code	Cable diameter		Hole size		Normal break	Rope structure
KCM-B51	3/32"	2.4 mm	2" × 2"	51 mm × 51 mm	920 lbs	7 × 7 cable structure
KCM-B60	3/32"	2.4 mm	2.4" × 2.4"	60 mm × 60 mm	920 lbs
KCM-B76	3/32"	2.4 mm	3" × 3"	76 mm × 76 mm	920 lbs
KCM-B90	3/32"	2.4 mm	3.55" × 3.55"	90 mm × 90 mm	920 lbs
KCM-B102	3/32"	2.4 mm	4" × 4"	102 mm × 102 mm	920 lbs

Knotted cable mesh - 5/64" cable
Code	Cable diameter		Hole size		Normal break	Rope structure
KCM-C38	5/64"	2.0 mm	1.5" × 1.5"	38 mm × 38 mm	676 lbs	7 × 7 cable structure
KCM-C51	5/64"	2.0 mm	2" × 2"	51 mm × 51 mm	676 lbs
KCM-C60	5/64"	2.0 mm	3" × 3"	60 mm × 60 mm	676 lbs
KCM-C76	5/64"	2.0 mm	3.55" × 3.55"	76 mm × 76 mm	676 lbs

Knotted cable mesh - 1/16" cable
Code	Cable diameter		Hole size		Normal break	Rope structure
KCM-D25	1/16"	1.6 mm	1" × 1"	25.4 mm × 25.4 mm	480 lbs	7 × 7 cable structure
KCM-D30	1/16"	1.6 mm	1.2" × 1.2"	30 mm × 30 mm	480 lbs
KCM-D38	1/16"	1.6 mm	1.5" × 1.5"	38 mm × 38 mm	480 lbs
KCM-D51	1/16"	1.6 mm	2" × 2"	51 mm × 51 mm	480 lbs
KCM-D60	1/16"	1.6 mm	3" × 3"	60 mm × 60 mm	480 lbs

Knotted cable mesh - 3/64" cable
Code	Cable diameter		Hole size		Normal break	Rope structure
KCM-E20	3/64"	1.2 mm	0.8" × 0.8"	20 mm × 20 mm	270 lbs	7 × 7 cable structure
KCM-E25	3/64"	1.2 mm	1" × 1"	25.4 mm × 25.4 mm	270 lbs
KCM-E30	3/64"	1.2 mm	1.2" × 1.2"	30 mm × 30 mm	270 lbs
KCM-E38	3/64"	1.2 mm	1.5" × 1.5"	38 mm × 38 mm	270 lbs

Architectural Stainless Steel Wire Mesh Specifications :

Architectural Stainless Steel Wire Mesh
Cable Construction	Cable Diameter		Mesh Hole Size(W x H)		Breaking Strength
	inch	mm	inch	mm	KN
7x19	1/8	3.2	4.75'' x 4.75''	120x120	7.38
7x19	1/8	3.2	4'' x 4''	102x102	7.38
7x19	1/8	3.2	3.6'' x 3.6''	90x90	7.38
7x19	1/8	3.2	3'' x 3''	76x76	7.38
7x19	1/8	3.2	2'' x 2''	51x51	7.38
7x7	3/32	2.4	4'' x 4''	102x102	4.18
7x7	3/32	2.4	3.6'' x 3.6''	90x90	4.18
7x7	3/32	2.4	3'' x 3''	76x76	4.18
7x7	3/32	2.4	2.4'' x 2.4''	60x60	4.18
7x7	3/32	2.4	2'' x 2''	51x51	4.18
7x7	5/64	2.0	3'' x 3''	76x76	3.17
7x7	5/64	2.0	2.4'' x 2.4''	60x60	3.17
7x7	5/64	2.0	2'' x 2''	51x51	3.17
7x7	5/64	2.0	1-1/2'' x 1-1/2''	38x38	3.17
7x7	1/16	1.6	3'' x 3''	76x76	2.17
7x7	1/16	1.6	2'' x 2''	51x51	2.17
7x7	1/16	1.6	1-1/2'' x 1-1/2''	38x38	2.17
7x7	1/16	1.6	1.2'' x 1.2''	30x30	2.17
7x7	1/16	1.6	1'' x 1''	25.4x254	2.17
7x7	3/64	1.2	1-1/2'' x 1-1/2''	38x38	1.22
7x7	3/64	1.2	1.2'' x 1.2''	30x30	1.22
7x7	3/64	1.2	1'' x 1''	25.4x25.4	1.22
7x7	3/64	1.2	4/5'' x 4/5''	20x20	1.22

The architectural stainless steel wire mesh Webnet is a vibrant and top-quality products: the mesh size (varying from too tight or too wide) and the wire rope diameter (1.0 mm, 1.5 mm, 2.0 mm and 3.0 mm) to determine its functionality and aesthetics.

Architectural Stainless Steel Wire Mesh Description :

Product Name	Architectural Stainless Steel Wire Mesh
Wire Diameter	3.0mm
Cable Construction	7x7 ,7x19
Width and Length	Customized , we can do as your requirement
Surface Treatment	Stainless steel polished

Architectural Stainless Steel Wire Mesh Characteristic:

Excellent visibility.
Stainless steel knotted rope mesh has unique rhombic openings which makes the product have good visibility. Therefore, stainless steel knotted rope mesh is suitable for zoo mesh and bird cages. And stainless steel knotted rope mesh allows visitors to watch animals better and prevents visitors from being hurt by animals effectively. In other words, stainless steel knotted rope mesh shortens the distance between visitors and animals.

Close to nature and environmentally friendly.
Stainless steel knotted rope mesh can be used in any climate and environment. And it is resistant to rust although it is subject to violent sunlight, rain, snow and fog. So its service life can be up to more than 30 years. Besides, it can be used repeatedly. Above all, it doesn't need maintenance after installation.

Luxury appearance.
Stainless steel knotted rope mesh has smooth appearance and diamond-shaped openings. What's more, stainless steel knotted rope mesh itself is a beautiful landscape.
Outstanding elasticity and buffer ability.
Stainless steel knotted rope mesh has good elasticity and buffer ability. Therefore, it is resistant to impact from animals when used in zoo. Above all, neither animals nor stainless steel knotted rope mesh will be hurt. And it can provide a safe and comfortable living environment for animals and birds.
