tubular diplomat panels 2100mm*2400mm stain INTERPON powder

Name: tubular diplomat panels 2100mm2400mm stain INTERPON powder
Brand: Diplomat Fence
Price: 58.88 USD

Quality tubular diplomat panels 2100mm*2400mm stain INTERPON powder wholesale

Brand Name : Diplomat Fence

Model Number : Diplomat-1200mm-1500mm-1800mm-2100mm-2400mm

Certification : AS/NZS1163& AS/NZS4506-1998

Place of Origin : New Zealand And Australia Design

MOQ : 100

Price : 58.88$

Payment Terms : TT 30% deposit balance 70% at sight of done cargo

Supply Ability : 3000

Delivery Time : 7 days

Packaging Details : Metal Pallet With Plastic Jacket

Materials : Q235

Color : Black and Grey or other

Dimensions : 1800mm x 2400mm ,2100mm x 2400mm or Customized

Salt Spray Testing : Pass

Treatment : Powder Coated ,Hot Dipped Galvanized

Technical : Punch Pipes and Welding etc

Nick Name : Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence

Upright Pipes : 25mm x 25mm x 1.20mm

Rails : 40mm x 40mm x 1.60mm

Post : 65mm x 65mm x 2.00mm x 3000mm

Popular : Powder Coated Stain Black

Apllication : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence

Contact Now

**tubular diplomat panels 2100mm*2400mm stain INTERPON powder**

Garrison Fencing, Heavy Duty Security Fence with pressed spear top, the premium boundary solution for industrial and commercial properties, constructed from quality pre-galvanised steel tubes, punch through or face welded, all welds silicon bronze for rust-proof, multi-layer protection powder coated realize exceptional anti-corrosion and weather resistant performance. Aluminum version also available for 2/3 lighter weight and easier carring.


Punch through type

Face welded type

Panel Width	Panel Height	SQ Rail	SQ Picket	SQ Post
2400mm (8')	1800mm (6')	40x40mm (1-1/2")	25x25mm (1")	65x65mm (2-1/2")
2400mm (8')	2100mm (7')	40x40mm (1-1/2")	25x25mm (1")	65x65mm (2-1/2")
2400mm (8')	2400mm (8')	40x40mm (1-1/2")	25x25mm (1")	65x65mm (2-1/2")

Manufacturing Technique

Manufactured from strong struture pre-galvanised steel tubes, rails and pickets punched through or face welded.
 Zinc-rich Phosphating Pre-treatment ensure superior adhesion between the coating and base material.
 Epoxy Primer Powder Coating cover all welds and cut edges for long-term anti-corrosion and anti-impact performance.
 AkzoNobel Polyester Finish Powder Coating realize exceptional weather resistance with various colours available.
 20 Year Limited Manufacturer Warranty.

Satin Black(most popular)

Gloss Black

Black Sand

Production Process

1.Automated Cutting, Punching & Drilling with high precision

2.Zinc-rich Phosphating Pre-treatment enhance the adhesion

3.All Welds Silicon Bronze for anti-rust protection

4.Zinc-rich Epoxy Primer Coating for long-term anti-corrosion

5.AkzoNobel Top Coating realize exceptional weather resistance

6.Pallet Packing ensure the integrity of the products delivered

Product packaging

Consistent spears with the same shape and height

Pressed spears without cracks

Fantastic coating effect with smooth surface

Plastic cushion or plastic bag packing for protection

Various colors available, powder by AkzoNobel

Palletized packing and loading for transportation safety

Garrison Fencing used in Schools, Office Buildings, Government Buildings, Commercial Perimeters, Sports Facilities, Industrial Properties, Recreation Facilities, Residential Complexes, utility Infrastructure

Tubular iron fence Features and Benefits

Aesthetically pleasing
Rust and corrosion proof powder coat finish
Variety of powder coat finish colours
Prevents unauthorised access of vehicles and persons
Long life

Panel size	2400mm (L) x 2100mm (H) 2400mm (L) x 1800mm (H)
Rails	40mm x 40mm x 1.6mm 2 rails or 3 rails
Pickets	25mm x 25mm x 1.2mm x 17pcs
Post	60mm x 60mm x 2.0mm 80mm x 80mm x 2.0mm
Fitting	Metal clips, bolt and nut
Raw material	hot dipped galvanized tube
Surface treatment	powder coated a popular colour is black

Finish and Treatment	Advantage
Galvanized to be AS/NZS 1163	High Security
Powder coated to Be AS/NZS 4506-1998	Less Maintenance Cost
Powder coated thickness Minimum 80 microns	Anti-tamper proof fasteners
Standard Color to Be Black	Minimal wind resistance
Powder Brand INTERPON	Long life span cause robust design and quality finish
Available all RAL Colour Chart	Contemporary design with aesthetic appeal&Unattractive to graffiti vandalism
Garrison Fence Panels	Applications
Fencing Panels Height available 1.2 1.8 2.1& 2.4 Meter Width 2400mm	Industrial & commercial sites
Silicon bronze& stainless steel full welding	Boundary fencing
Each upright tubing Insert Rails or Face to Face welding	Schools and Park
Flexible Upright spacing	l Garden, Home
Rails 40SHS as a standard also available SHS40 and SHS50	Factory, School, Villa
Upright SHS25 ,SHS30 etc	public facilities fences
l Post SHS 60 SHS 65SHS 80 &SHS 100	construction fences

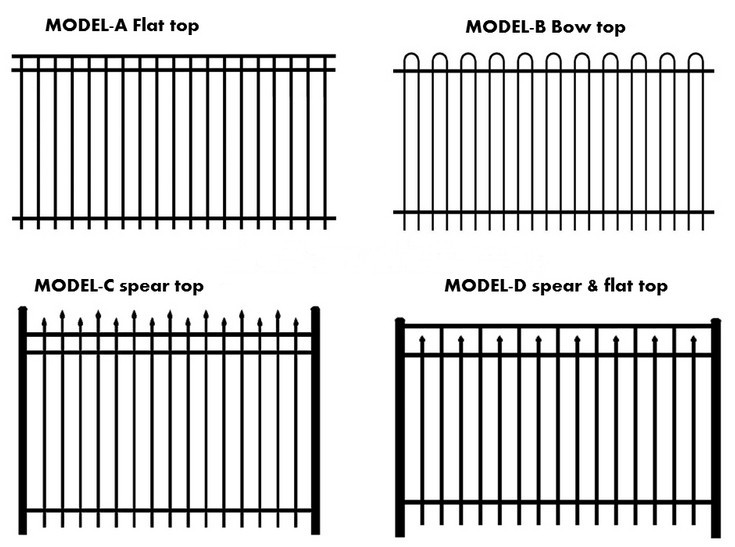

popular spear top design
