8'x12' construction chain link fence panels 1⅝"(41.2mm) with a wall thickness 16ga /1.6mm mesh aperture 2¼"x2¼"(57mmx57

Name: 8x12 construction chain link fence panels 1quot412mm with a wall thickness 16ga 16mm mesh aperture 2quotx2quot57mmx57
Brand: LNF-Chain link Fence Panels
Price: 4.00 USD

Quality 8'x12' construction chain link fence panels 1⅝"(41.2mm) with a wall thickness 16ga /1.6mm mesh aperture 2¼"x2¼"(57mmx57 wholesale

Brand Name : LNF-Chain link Fence Panels

Model Number : 4'6'8' Height

Certification : ASTM

Place of Origin : American Design China Made

MOQ : 1700 liner ft

Price : 4.00$/liner ft

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner ft

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel Pipes and Wire

Mesh Opening : 2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)

Diameter : 0ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m

Type : chain link mesh panels

Finish : Hot dipped galvanized 100gram.sqm 300gram.sqm and 366gram.sqm 610gram.sqm

Warranty : 5-15 years depand on treatment

Customized : Available

Size : 4"x12' 6"x12' 8"x12'

Feet : 36" length x 30" width x 8"Height /914mmx762mmx203mm

Accessoires : clips

Contact Now

8'x12' construction chain link fence panels 1⅝"(41.2mm) with a wall thickness 16ga /1.6mm mesh aperture 2¼"x2¼"(57mmx57mm)

As a standard Temporary panels constructed highest quality, which ensures more rentals per panel and higher revenues for you with a 1.375" frame tubing and cross bracing 1" tubing extra bracing available 8'x12' 8'x10' and optional 6'x10' and 6'x12' temporary panels chain link fabric infilled

Construction Chain Link Fence Panels
Tubing	1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(41.2mm) 1⅞"(48mm)and so on
Thickness of Tubing	14ga/2.00mm 14.5ga/1.90mm 15ga/1.80mm 15.5ga/1.70mm 16ga /1.6mm 16.5ga/1.50mm 17ga1.42mm 18ga 1.22mm
Chain mesh aperture	2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Height	4ft/1220mm 6ft/1820mm 8ft/2420mm
Width	12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size	6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge	10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Base Optional 1	36" length x 30" width x 8"Height /914mmx762mmx203mm
Base Optional 2	36" length x 16" width x 8" Height /914mmx406mmx203mm
Base Optional 3	30" length x 18" width x 8" Height /762mm x460mm x203mm
Standard	ASTM A392-06
Steel	Galvanized Steel Construction
Finish	Corrosion-Resistant Zinc Coating
Transport Packing	Metal pallet Wrapped with Plastic
HDG zinc thickness	14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM

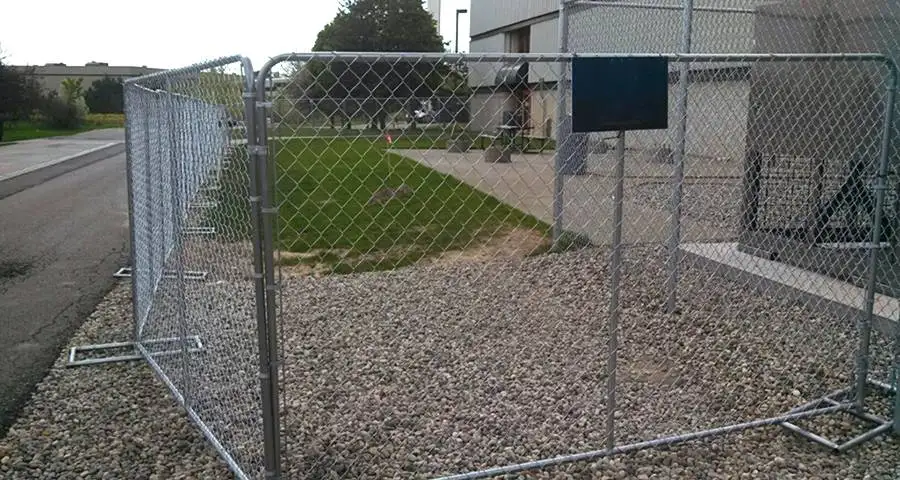

Chain Link Temporary Fence is also known as Temporary panels Security Fence. Chain link temporary fence is kind of wire woven mesh, the mesh hole is uniform, the mesh is high quality and have long using life.The Galvanized steel chain link temporary fence panels are easy to install, no tools required. Those temporary panels can be connected by using simple clamps. Chain link temporary fence panel is strong and durable, and panels can be relocated and redirected easily.
▶Chain Link Temporary Fence is also known as Temporary Barrier Security Fence. Chain link temporary fence is kind of wire woven mesh, the mesh hole is uniform, the mesh is high quality and have long using life.The Galvanized steel chain link temporary fence panels are easy to install, no tools required. Those temporary panels can be connected by using simple clamps. Chain link temporary fence panel is strong and durable, and panels can be relocated and redirected easily.
▶Chain link Panel Fencing from LN Fence is an excellent perimeter security solution when an in-ground post
 installation is not a viable option. Easy to transport and secure into place, above-ground panel fencing provides a sturdy and reliable barrier for many job site applications.

Material	Low carbon steel
Surface Treatment	Hot dipped galvanized, powder coated, PVC coated
Wire Diameter	2mm~4mm
Fence Height	1.2m, 1.8m, 2.4m, etc
Fence Length	3m, 3.6m, 4.3m etc
Chain Link Mesh Size	50mm50mm, 60mm60mm, etc
Frame tube O.D	32mm, 33.4mm, 42mm, etc
Cross brace tube O.D	25mm, 32mm, etc
Fence Base/stand Size	610590mm, 762460mm, etc

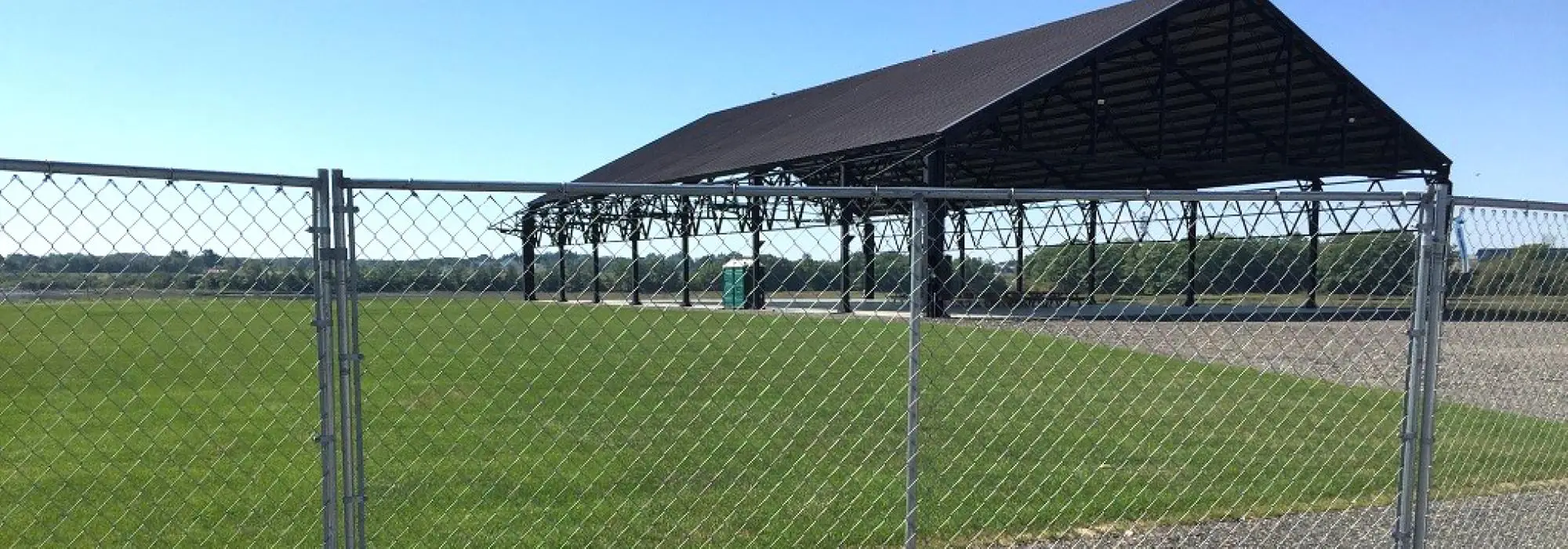

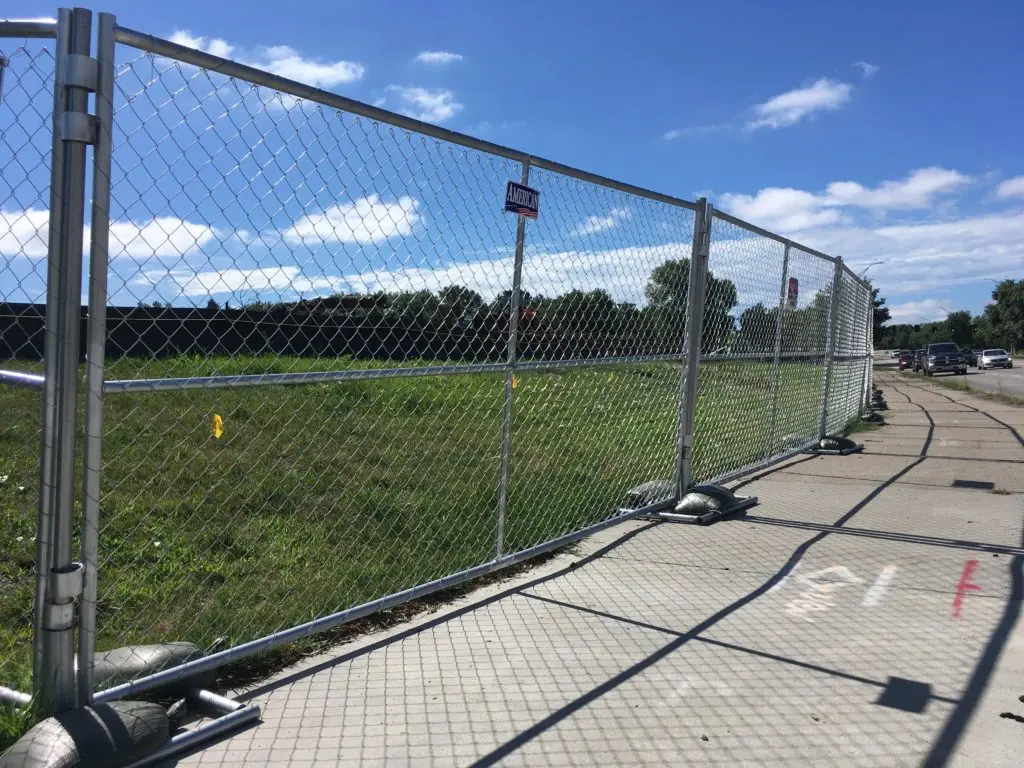

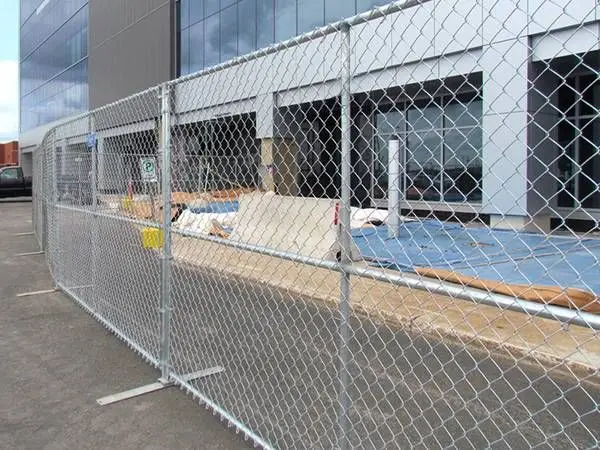

TEMPORARY CHAIN LINK FENCE  are one of the best choice for outdoor job security, outdoor and sporting events, airports and any places where you need security and privacy. We can often see that temporary barrier security fences are used at special outdoor events, parking lots, tennis courts, basketball courts, kid playground and disaster relief sites. It is easy to install when using. These panels are also used to create pet fences. Also, you can use them as your needs.

8'x12' construction chain link fence panels 1⅝"(41.2mm) with a wall thickness 16ga /1.6mm mesh aperture 2¼"x2¼"(57mmx57

• Commercial Construction

• Public Works Projects

• Remodels & Tenant Improvements

• Housing Developments

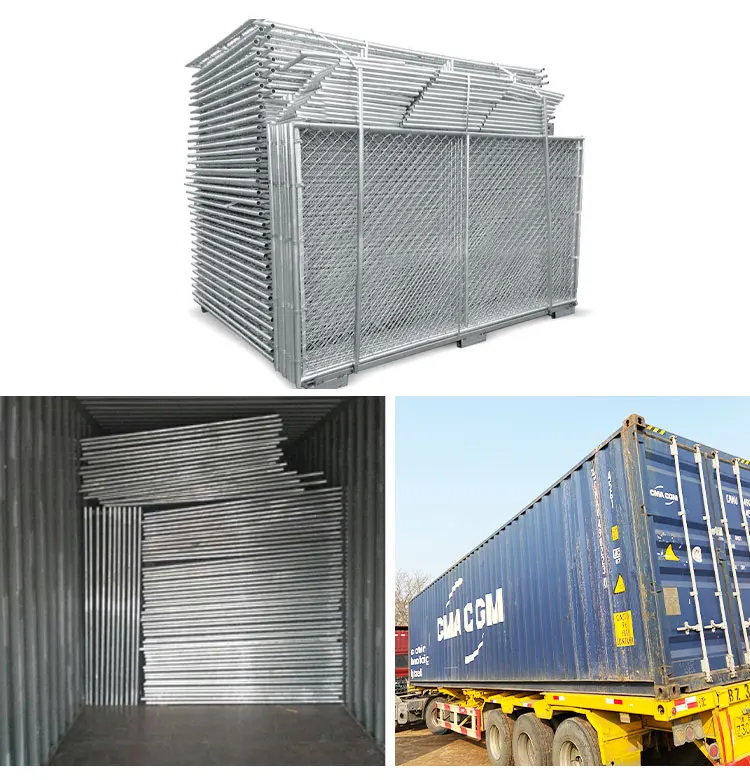

Packaging & Loading


☞Galvanized Steel Construction

 ☞Corrosion-Resistant Zinc Coating

☞Secure In-Ground Installation

☞Installs in a Variety of Surfaces

 ☞Eliminates Digging and Debris Removal

 ☞Easy to Install, Maintain and Remove

 ☞Cost Effective vs. Permanent

8'x12' construction chain link fence panels 1⅝"(41.2mm) with a wall thickness 16ga /1.6mm mesh aperture 2¼"x2¼"(57mmx57 Images
